Available at Topline!

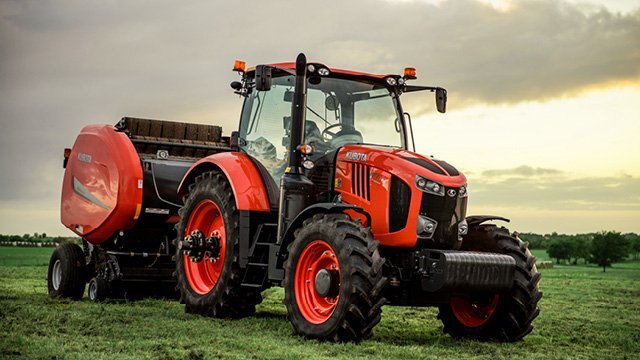

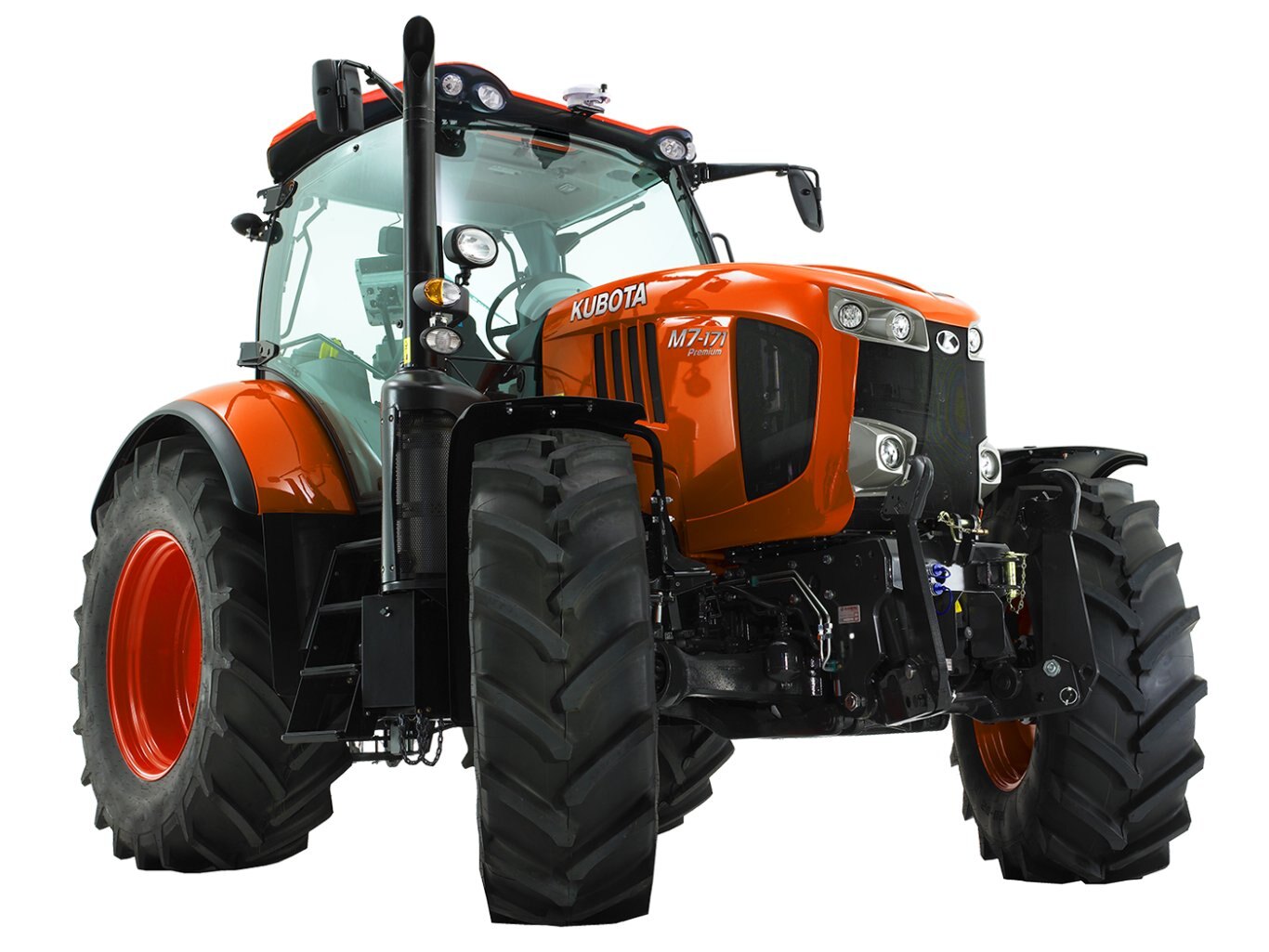

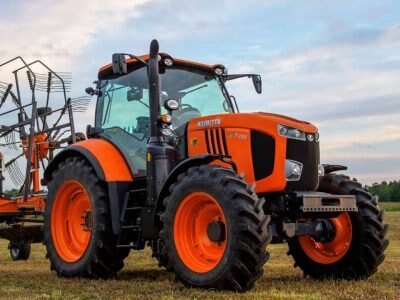

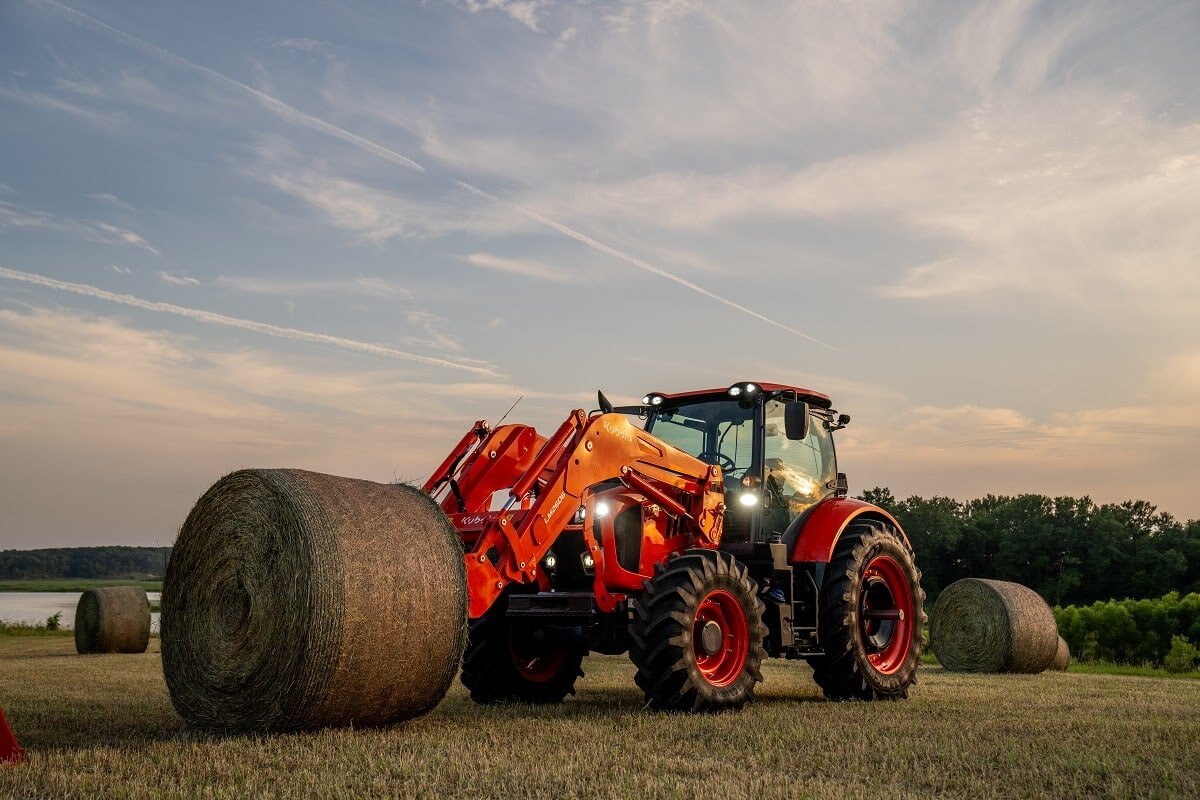

Specially designed for the farming professional, the versatile and hard-working M7-1 tractor is powered by a next-generation 6.1 litre, four cylinder, diesel engine with Ultra Low Emission technology to help protect the environment.

The V6108 engine boasts the latest in clean-engine technology. Selective Catalytic Reduction (SCR) injects diesel exhaust fluid (DEF/Adblue) into the hot exhaust gas, transforming it into harmless water vapor and nitrogen.

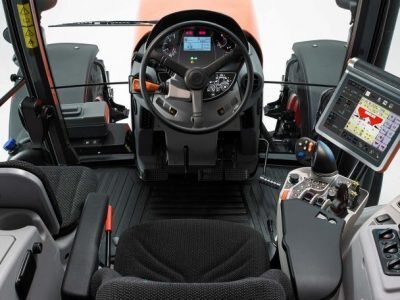

Get more done in less time and with less effort. The M7-1’s unique multi-function, operating lever places every major function on a single, easy-to-use control lever. Your left hand is free for steering while your right hand is always on the lever. Tractor operations couldn’t be simpler or more convenient.

All of the M7-1’s functions are conveniently displayed on a single, large LCD touch screen and can be adjusted and set with the touch of a finger. The four main functions are; Tractor Control, ISO-BUS connector-compatible implement control, GPS-compatible auto-guidance and a camera monitor. You can even edit the displayed information to show only what you want to see.

_________________________________________________

Specs

Model

Model name

M7-154

Engine

Model

V6108-CR-TIER4

Type

Direct Injection, with Intercooler turbocharger, water-cooled 4 cycle diesel engine

Bore

4.65 in / 118 mm

Stroke

5.51 in / 140 mm

Rated engine speed

2100 rpm / 2100 rpm

Engine gross horsepower @ rpm

148 HP / 110.36 kW

PTO horsepower

120 HP / 89.48 kW

Displacement

374 cu. in. / 6124 cc

Boost power

20 HP / 20 HP

Alternator

200 A / 200 A

Fuel tank capacity

87 gal / 330 l

Cylinders

4

Number of

Fuel system

Fuel type

Diesel

Electrical

Battery

1400 A / 1400 A

Fluid capacities

DEF tank capacity

10 gal / 38 l

Drive train/transmission

Main clutch

Hydraulic multi-plate wet disc

Clutch type

Main gear shift

6-speed Powershift, CVT

Max. traveling speed

31.2 mph / 50 km/h

Range gear shift

5-speed synchronized (GST)

Shuttle

Electro-hydraulic shuttle

Transmission type

Semi-Powershift, CVT

Forward

30

Reverse

15

Number of speeds

Creep (forward)

54

Creep (reverse)

27

Number of speeds (optional)

Hydraulic system

Control system

Electronic draft control / Lower link sensing

3-Point hitch

Category 3 / 3N

Pump capacity

29 gpm / 110 l/min

Type

Closed center, load sensing

Remote valves

Mechanical (Deluxe), Electronic (Premium) valve

Remote valves

Maximum 4 (Deluxe) 5 (Premium) valves

Number of

At 24 in. behind lift point OECD

11797 lb / 5350 kg

Lift capacity

Power take off (PTO)

PTO/engine speed

540 rpm / 540 rpm

Rear

PTO/engine speed

1000 rpm / 1000 rpm

Front

Chassis, axle and brakes

Rear axle type

Flanged axle or 110" bar axle

Tires

Front

14.9 R28

Rear

18.4 R38

Standard

Dimensions and weight

Overall height

119 in / 3030 mm

Overall length

188 in / 4770 mm

Overall width

98.4 in / 2500 mm

Wheelbase

107 in / 2720 mm

Shipping weight

14546 lb / 6598 kg
