Item Details

Item Description

Specs

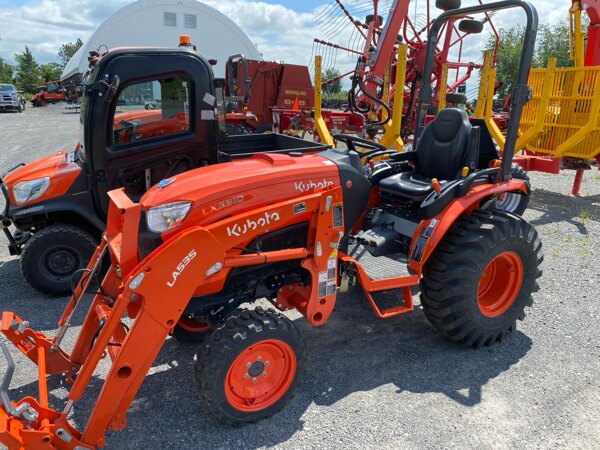

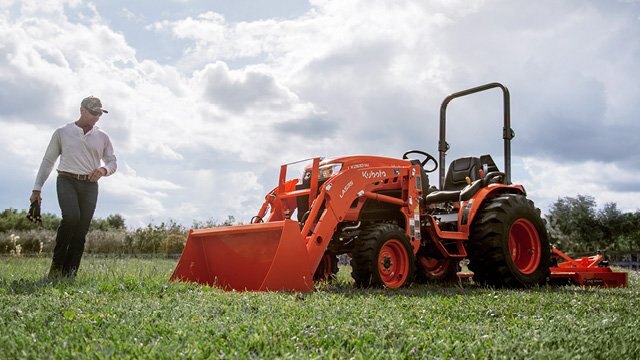

Model  Model name LX3310

Engine Model V1505-CR-TE5-D36R1

Type E-CDIS, liquid cooled, 4-cylinder diesel

Air pre-cleaner 6.0 inch Dual paper elemen

Bore 3.1 in / 78 mm

Stroke 3.1 in / 78.4 mm

Cooling system Pressurized radiator

Lubrication Forced lubrication

MakeV1505-CR-TE5-D36R1

Radiator fan Radial air flow

Rated engine speed  2500 rpm / 2500 rpm

Engine gross horsepower @ rpm 30.8 HP / 23 kW

PTO horsepower 27 HP / 20.1 kW

Displacement 91.5 cu. in. / 1498 cc

Fuel tank capacity 7.1 gal / 27 l

Power take off (PTO)

Type Independent

PTO/engine speed 540 rpm / 540 rpm Rear

Rated engine speed 2500 rpm / 2500 rpm Mid

Drive train/transmission

Clutch N/A

Transmission type HST (3 ranges)

Differential lock Standard

Brake type Multi-plate wet disc

Hydraulic system

Control system Position control valve

3-Point hitch Category I

Type Open center

Total pump output 8.7 gpm / 33.1 l/min

Pump type Dual pump

Hydraulic outlet Rear outlet

Steering type Hydraulic power steering

24" behind lift point 1676 lb / 760 kg

At lift points 2139 lb / 970 kg

Lift capacity

Chassis, axle and brakes

Final drive Spur gear

Dimensions and weight

Ground clearance 14.6 in / 370 mm

Overall height 88.4 in / 2245 mm

Wheelbase 65.6 in / 1666 mm

Weight 2072 lb / 940 kg

Without 3 Pt hitch 101.8 in / 2585 mm

Overall length (min. tread) 53.7 in / 1365 mm

Overall With brake

6.9 ft / 2.1 m

Turning radius

Fluid capacities

Cooling system capacity

4.5 qt / 4.3 l

Engine lubricant oil capacity

5 qt / 4.7 l

Transmission oil capacity

4 gal / 15 l

Fuel system

Fuel type

diesel

Traveling speed

Forward (R1)

13.6 mph / 21.9 km/h

Reverse (R1)

10.3 mph / 16.5 km/h

Other

Features

Cruise control (Multi-stage notch), Tilt-steering, Deluxe seat with arm rest, Parallel link with dam
